特點與用途/Features & Applications

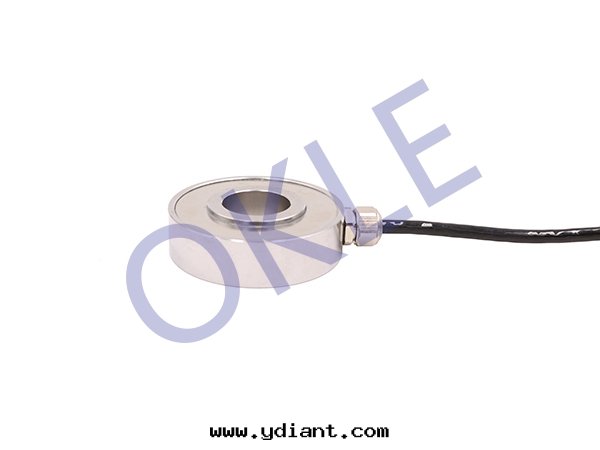

●結構特點:环形中空型結構
●輪輻式或截面膜盒式結構，結構緊湊，小巧
中心通孔或螺紋，，可以直接連接丝杆或者受力杆，抗偏载能力強，精度高；适合于安裝空間有限的設備上的力值检測、控制
●動态響应頻率小于300HZ

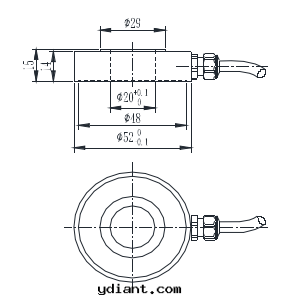

安裝尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
額定容量 | Capacity | 0.1,0.2,0.5,1,2,3,5kN |
輸出靈敏度 | Rated output | 1.5±20%mV/V |
零點輸出 | Zero balance | ± 0.05mV/V |
非線性 | Non-linearity | 0.20%F.S. |
滞後 | Hysteresis | 0.20%F.S. |
重複性 | Repeatability | 0.10%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
輸入電阻 | Input impedance | 780±20Ω |
輸出電阻 | Output impedance | 700±10Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~60℃ |
工作温度範圍 | Operation temp range | -20~80℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
電缆線尺寸 | Cable size | Φ4×3000mm |
TEDS可選 | ||
