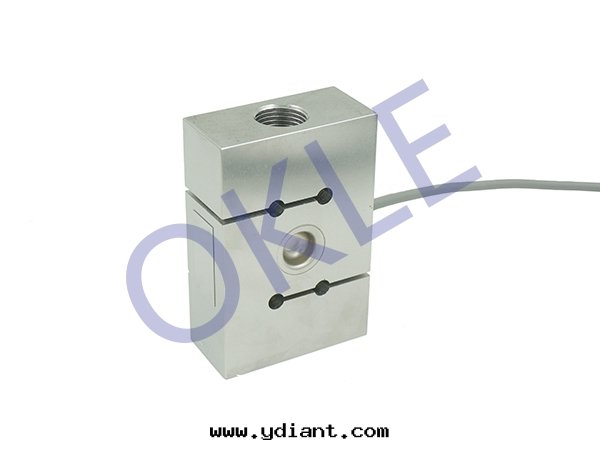

特點與用途/Features & Applications
●高度低、變形量小、防護等級高（IP68）
●不鏽鋼材料,可用于惡劣环境，防潮防水
●拉壓双向
●主要用于推拉力計，料斗秤，各種工業稱重測力系统等
安装尺寸/Mounting Dimension
Cap（kg） | L | H | W | M |
50 | 50.8 | 63.5 | 25.4 | M8 |
100，200 | 50.8 | 76.2 | 25.4 | M12 |
500 | 57.2 | 87.3 | 31 | M12 |
1000 | 57.2 | 87.3 | 31 | M12 |
2000 | 69.8 | 100 | 36.5 | M24×2 |
3000 | 69.8 | 100 | 36.5 | M24×2 |
5000 | 76.2 | 114.3 | 36.5 | M24×2 |
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
额定容量 | Capacity | 50,100,200,500,1000,2000, 3000,5000kg |
輸出靈敏度 | Rated output | 2.0±0.25%mV/V |
零點輸出 | Zero balance | 0.01mV/V |
非線性 | Non-linearity | 0.018%F.S. |
滞後 | Hysteresis | ±0.018% F.S. |
重複性 | Repeatability | 0.018%F.S. |
蠕變（30min） | Creep(30min) | 0.024%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.014%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.017%F.S./10℃ |
輸入電阻 | Input impedance | 350±5Ω |
輸出電阻 | Output impedance | 350±5Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~40℃ |
工作温度範圍 | Operation temp range | -30~70℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 300%F.S. |
電缆線尺寸 | Cable size | Φ5.4×3000mm |
