特點與用途/Features & Applications

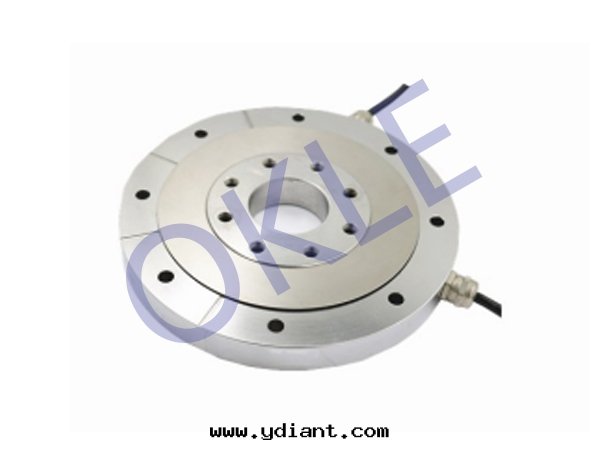

●壓扭複合力傳感器
●两信号互擾誤差小
●高度低，易于安装
●接受定制規格

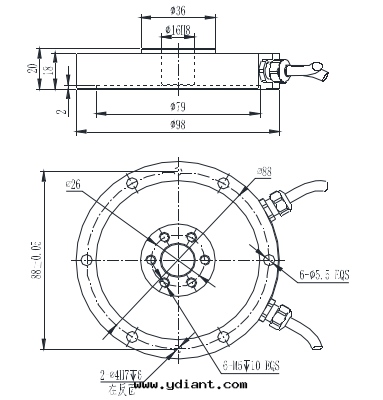

安装尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數 | Specifications | 技術指标/Technique |
额定容量 | Capacity（N/N.m） | F:20/30/50/100/200/500/1000/2000N M: 1/2/3/5/10/20/30/50N.m |
輸出靈敏度 | Rated output | 1.0±10%mV/V |
零點輸出 | Zero balance | ±2%F.S. |
非線性 | Non-linearity | 0.1%F.S. |
滞後 | Hysteresis | 0.1%F.S. |
重複性 | Repeatability | 0.1%F.S. |
互擾誤差 | Interference error | 0.2%F.S. |
温度靈敏度漂移 | Temp.effect on output | 0.05%F.S./10℃ |
零點温度漂移 | Temp.effect on zero | 0.05%F.S./10℃ |
輸入電阻 | Input impedance | 350±10Ω |
輸出電阻 | Output impedance | 350±10Ω |
絕緣電阻 | Insulation | ≥5000MΩ/100VDC |
激勵電壓 | Recommended excitation | 5~15V |
最大激勵電壓 | Maximum excitation | 20V |
温度補償範圍 | Compensated temp range | -10~40℃ |
工作温度範圍 | Operation temp range | -20~75℃ |
安全超载 | Safe overload | 150%F.S. |
极限超载 | Ultimate overload | 200%F.S. |
電缆線尺寸 | Cable size | Φ4×3000mm |
防護等級 | IP Class | IP66 |
