特點與用途/Features & Applications
●微型傳感器、精度高、防过载
●不鏽鋼或鋁合金材料
●拉壓双向
●主要應用于電腦等各種3C産品按鍵力測試，各種開關按鍵測試，各種插拔力測試、醫療檢測、及其他工業測試、測量及控制系统
●動态響應頻率高

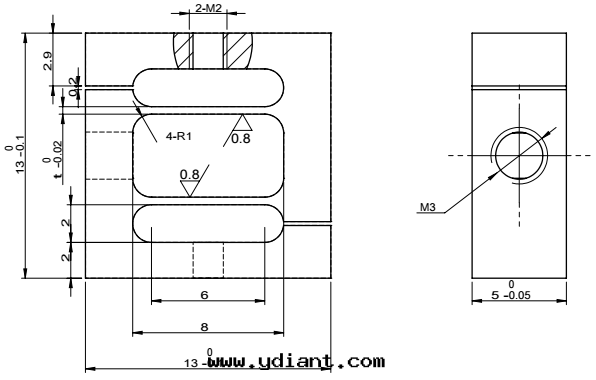

安装尺寸/Mounting Dimension
受力方式/Load Direction
| 配線图/ Wiring Code
|
參數
| Specifications
| 技術指标/Technique
|
额定容量
| Capacity
| 1,2.5,5,10,20,50,100,200, 300,500N
|
輸出靈敏度
| Rated output
| 2.0±10%mV/V
|
零點輸出
| Zero balance
| ±0.02 mV/V
|
| Non-linearity
| 0.05%F.S.
|
滞後
| Hysteresis
| 0.05%F.S.
|
重複性
| Repeatability
| 0.05%F.S.
|
温度靈敏度漂移
| Temp.effect on output
| 0.05%F.S./10℃
|
零點温度漂移
| Temp.effect on zero
| 0.05%F.S./10℃
|
輸入電阻
| Input impedance
| 350±30Ω
|
輸出電阻
| Output impedance
| 350±5Ω
|
絕緣電阻
| Insulation
| ≥5000MΩ/100VDC
|
激勵電壓
| Recommended excitation
| 5V
|
最大激勵電壓
| Maximum excitation
| 15V
|
温度補償範圍
| Compensated temp range
| -10~60℃
|
工作温度範圍
| Operation temp range
| -20~80℃
|
安全超载
| Safe overload
| 150%F.S.
|
极限超载
| Ultimate overload
| 300%F.S.
|
電缆線尺寸
| Cable size
| φ2×3000mm
|
TEDS可选
|
